Monitoring Profile: Trigger Conditions

Use this function to define a condition to match the discovered data as configured.

1.

On the main window, click the gear icon and select Discovery > Discovery Monitoring Profile. The Discovery Monitoring Profile window displays.

2.

Select either System Monitor or File Monitor.

3.

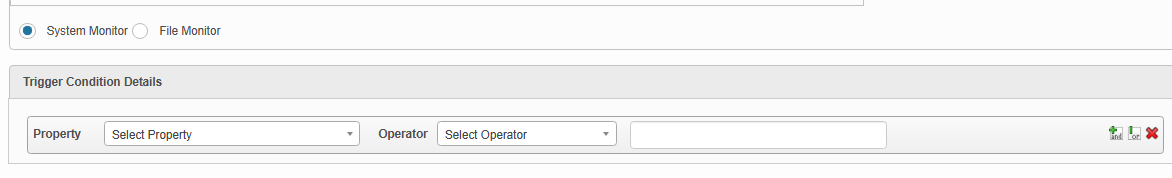

If System Monitor is selected:

a.

In the Property field, click the drop-down list and choose a property from those available.

b.

In the Operator field, click the drop-down list and choose the applicable operator. The Operators displayed are valid for the selected Property type.

4.

If File Monitor is selected:

a.

In the Type field, click the drop-down list and select the applicable type.

b.

In the text field, type the applicable type information.

5.

To add a row, click the plus + sign.

6.

To define an 'or' condition, click the or sign.

7.

To delete a row, click the -minus sign.

8.

When all selections/entries are made, and a match is found, the condition is triggered.

9.

Click the links below to complete the other sections on this window.

10.

When all selections/entries are made, click Add.
