Peripheral Devices

This function is only available with certain asset types. If this tab is not shown, details cannot be modified for the selected asset.

1.

While viewing an asset record, click Components.

2.

Click Peripheral Devices.

Add a New Peripheral Device

1.

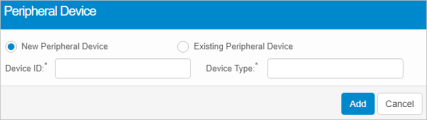

Click Add. The Peripheral Device dialog box displays.

2.

Click New Peripheral Device.

3.

Enter the applicable field information.

4.

When all selections/entries are made, click Save.

Modify Existing Peripheral Device

1.

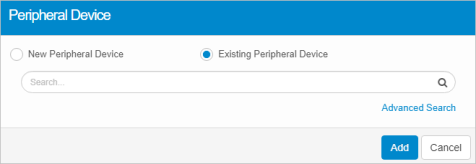

Click Existing Peripheral Device.

2.

Enter the search criteria to locate the existing device.  See also Advanced Search.

3.

Select the applicable device from the results list.

4.

When all selections are made, click Save.

View and Edit the Peripheral Device Details

1.

While viewing the list of existing devices, select the device to edit. The windows refreshes and the details for the device displays. These details are view only.

2.

To view the supporting CIs:

a.

Click the CI item.

b.

Click Components. Refer to CI Components.

3.

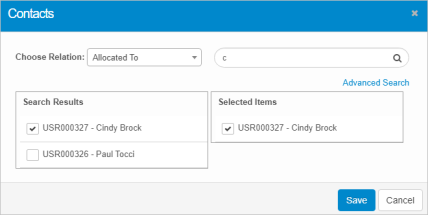

To add a contact, navigate to the Contacts section and click Add. The Contacts dialog box displays.

a.

In the Choose Relation field, click the drop-down list and select how this contact should be related to this asset.

b.

In the search field, enter the search criteria.

c.

Select a contact from the results list, moving it to the selected list.

d.

When all selections are made, click Save.

Delete Peripheral Device

While viewing the list of existing devices, select the device to delete, and click the Delete button.
